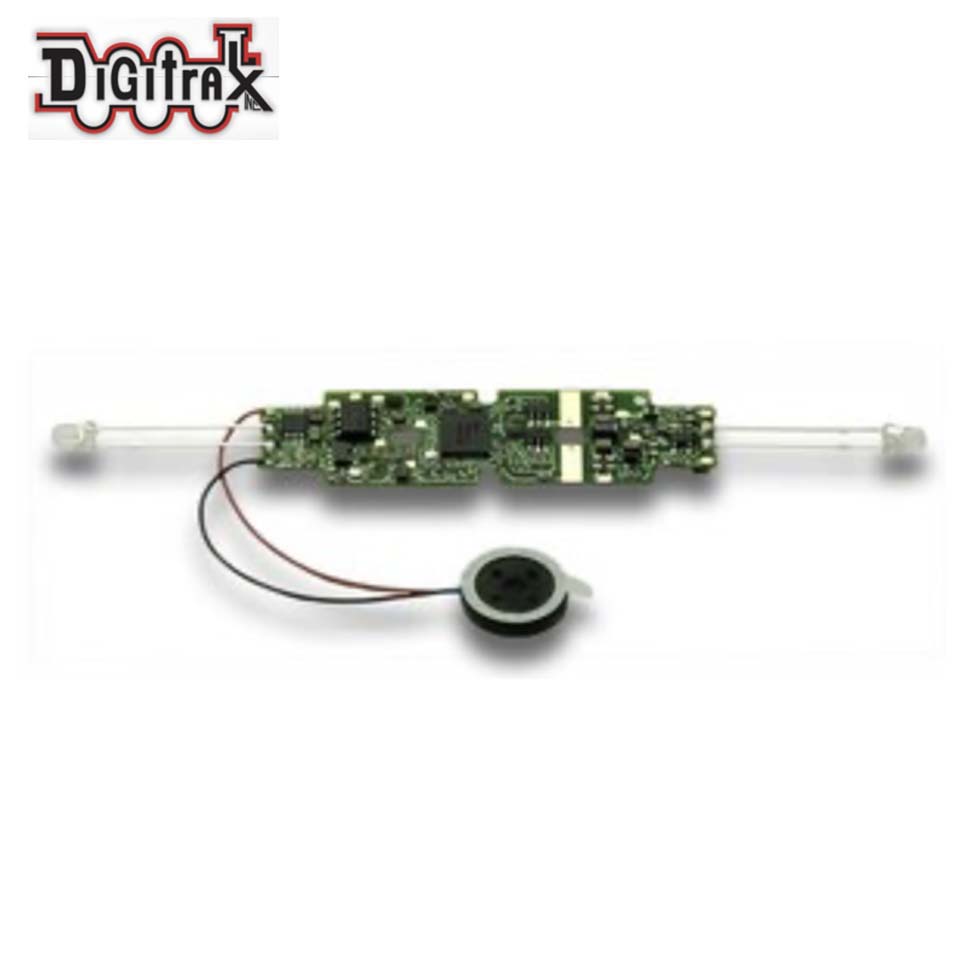

SDN144K0A 1 Amp N Scale Board Replacement SoundFX/Mobile/FX3 Function Decoder for Kato P42, E8, PA1, F40 and similar locos
Board replacement SoundFX®/Motor/FX3function decoder for N Scale Kato P42, E8, PA1, F40 and similar locos
- Board replacement decoder for N Scale Kato P42, E8, PA1, F40 and similar loco
- Preloaded with a Dual E8/F40 diesel scheme
- 4 FX3 Functions
Visiti Digitrax Sound Depot to learn how to customize the sound project in your decoder and how to download other projects.
- 1 Amp Continuous/1.3 Amp Peak Rating
- 13mm 8 Ohm round speaker
- 100uF capacitor
- Full Digitrax Series 4 mobile decoder feature set
- Speed Tables
- Simplified Scaleable Back EMF
- Advanced Consisting
- Forward and Reverse Trim
- Transponding
- Supersonic Motor Drive
- Decoder Lock and much more
- Use PR3 and SoundLoader Software to download your own fully customizable sound scheme to the
decoder - No external sensor required for sound workload
changes
Specifications
- Size : 0.55” x 2.22” x 0.10”
- Installation : Board Replacement (read more)
- Function Outputs : 4-200mA (read more)
- Function Type : FX3 (read more)
- Features : Series 4 (read more)
- Current Rating : 1.0 Amp (1.3 Amps Peak)
- Speaker : 8 Ohm 13mm round
- Capacitor : 100uF (6.25mm round x 7.88mm high)
- Simultaneous Voices : 3
- Onboard Sound Memory : 4 Megabit
