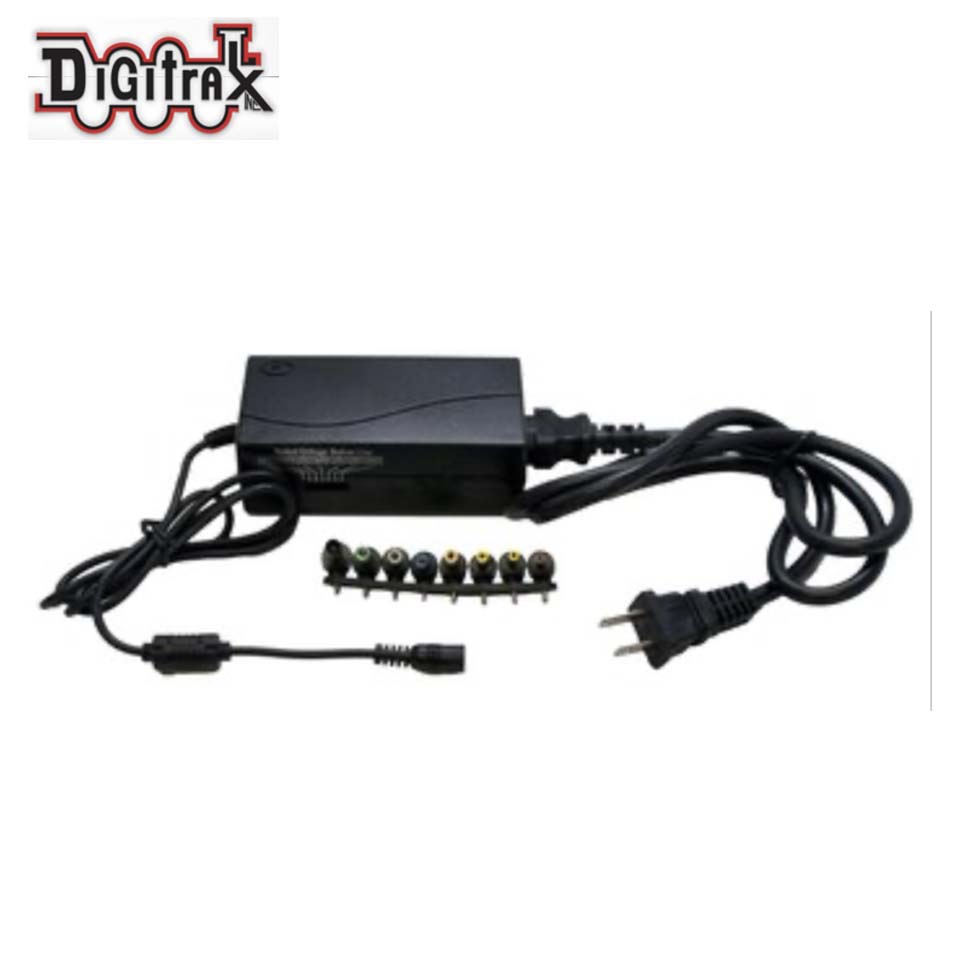

PS514 70W AC Power Supply

PS514 70W AC Power Supply, For use with Digitrax 5 Amp Starter Sets and accessories in multiple track scales and utility supply usages. Recommended by Digitrax for powering 5 Amp versions of Digitrax Super Empire Builder Xtra and Super Chief Xtra Sets & accessories.

Note: For DCS100/DB150 Minimum input should be: 12 volts AC or 15 volts DC.

Note: PS514 should not be used with Zephyr or Zephyr Xtra Starter Sets.  The PS314 supplied with the Zephyr Xtra or equivalent supply should be used with Zephyrs.

Note: PS514 should not be used with DCS200 or 8 amp starter sets.  These should use the PS2012 or other power supply that can supply 8 amps.

PS514 Features:

• High efficiency power supply
• 7 selectable output voltages, 12V, 13.8V, 15V, 16.8V, 19V, 20V, 24V DC output
• For use with Digitrax 5 amp Starter Sets and accessories in multiple track scales and utility supply usages
• Slide switch selectable
• Supplied with US to IEC, 2-pin grounded cord set
• Meets MEPS III “green” efficiency standards
• CE for EM compatibility and IEC 60950 safety requirements
• Full galvanic isolation of output voltage from AC input
• RoHS environmentally sensitive manufacturing
• Compact and lightweight
• Power indicator light
• Over current and overload protected
• Use the BLUE adapter plug to connect to the provided 2 wire cable for the DCS100 and DB150 Command Station/Boosters.
• Replaces the PS515

Specifications
